Fast Unmanaged 26 Port Ethernet Hub 10/100/1000mbps Network Switch

Ask Latest Price
Video Channel
Brand Name :Huawei
Model Number :S6720S-26Q-EI-24S-AC
Certification :CE
Place of Origin :China
Fixed Ports :24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot :Not supported
MPLS :MPLS, MPLS VLL, L3VPN
VPLS :Martini VPLS
Dimensions (W x D x H) :442 mm x 220 mm x 44.4 mm
Typical Power Consumption :AC: without subcard: 109W
Moq :1pc
Condition :100% Original New
more
Contact Now

Add to Cart

Find Similar Videos
Huawei S5735 Series Switches S5735S-L48FT4S-A 00:25
Huawei S5735 Series Switches S5735S-L48FT4S-A
Huawei S5735 L24T4S A1 bundle huawei sfp switch Ports 4*GE SFP Ports AC Power 00:19
Huawei S5735 L24T4S A1 bundle huawei sfp switch Ports 4*GE SFP Ports AC Power
Huawei CE6881-48T6CQ-B Switch (48*10GE RJ45, 6*100GE QSFP28, 2*AC Power Modules, 4*Fan Modules 00:24
Huawei CE6881-48T6CQ-B Switch (48*10GE RJ45, 6*100GE QSFP28, 2*AC Power Modules, 4*Fan Modules
JL725A Aruba 6200F Series Switch 6200F 24G Class4 PoE 4SFP+ 370W Switch 00:11
JL725A Aruba 6200F Series Switch 6200F 24G Class4 PoE 4SFP+ 370W Switch
CE5855-48T4S2Q-EI Huawei Data Center Switches CE 5800 Series 00:13
CE5855-48T4S2Q-EI Huawei Data Center Switches CE 5800 Series
Huawei CE5855-48T4S2Q-EI 48 Ports  Ethernet Port Switch 10GbE Network Switch 00:12
Huawei CE5855-48T4S2Q-EI 48 Ports Ethernet Port Switch 10GbE Network Switch
Huawei S5735-L24T4S-A1 24 Port Enterprise CloudEngine Campus Network Access Switch  CloudEngine S5735-L24T4S-A1 (24*10/100/1000BASE-T ports 00:22
Huawei S5735-L24T4S-A1 24 Port Enterprise CloudEngine Campus Network Access Switch CloudEngine S5735-L24T4S-A1 (24*10/100/1000BASE-T ports

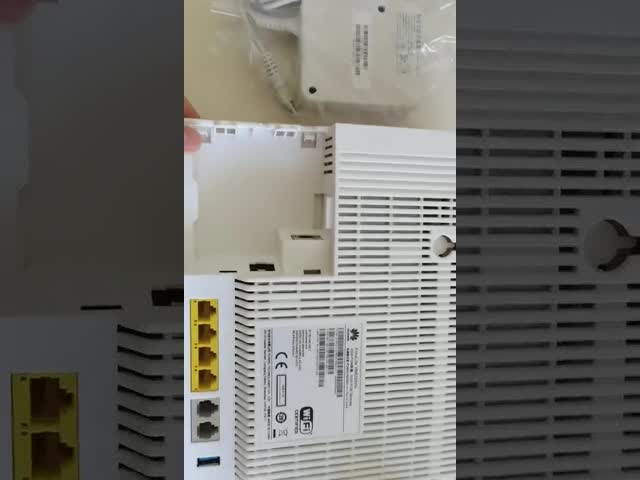

Huawei EchoLife HN8255Ws 10G PON ONT Intelligent XGS PON Routing Type ONT 00:31
Huawei EchoLife HN8255Ws 10G PON ONT Intelligent XGS PON Routing Type ONT
CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC 00:24
CloudEngine Gigabit Network Managed Switch Huawei S5736-S24UM4XC
CE16804 AH Huawei CloudEngine 12800 Series Data Center Switches  Huawei CE16804 AC HVDC Assembly Chassis 00:22
CE16804 AH Huawei CloudEngine 12800 Series Data Center Switches Huawei CE16804 AC HVDC Assembly Chassis
View Product Description

Fast Unmanaged 26 Port Ethernet Hub 10/100/1000mbps Network Switch

Huawei S6720S-26Q-EI-24S-AC switch is is a retail version. The Huawei S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks.

S6720S-26Q-EI-24S-AC Specifications

Fixed Ports 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slot Not supported
MAC Address Table 288K MAC address entries
MAC address learning and aging
Static, dynamic, and black hole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
QinQ and selective QinQ
IPv4 Routing Static routing, RIPv1, RIPv2, ECMP, and URPF
OSPF, IS-IS, and BGP
VRRP
Policy-based routing
Routing policy
IPv6 Routing Static route
RIPng
OSPFv3
BGP4+
ISISv6
IPv6 Features Neighbor Discovery (ND)
PMTU
IPv6 ping, IPv6 tracert, and IPv6 Telnet
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
Multicast Static Layer 2 multicast MAC address
MAC-based multicast forwarding
IGMP snooping and IGMP fast leave
Multicast VLAN
MLD snooping
IGMP proxy
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3
PIM-SM, PIM-DM, and PIM-SSM
MSDP
MVPN
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
MPLS MPLS, MPLS VLL, L3VPN
VPLS Martini VPLS
Reliability STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection
RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS (G.8032v2)
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
E-Trunk
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication and TACACS authentication
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
Super Virtual Fabric (SVF) Working as the parent node to vertically virtualize downlink switches as one device for management, supports two-layer clients architecture
Support as a client node to be managed by SVF parent
Management and Maintenance iStack (using service ports as stack ports)
MAC Forced Forwarding (MFF)
Virtual cable test
Ethernet OAM (IEEE 802.3ah and 802.1ag)
Local port mirroring and Remote Switched Port Analyzer (RSPAN), allowing an observing port to forward packets
Remote configuration and maintenance using Telnet
SNMP v1/v2c/v3
RMON
Web NMS
System logs and alarms of different levels
GVRP
MUX VLAN
Operating Environment Operating temperature: 0m to 1,800m: 0°C to 45°C; 1,800m to 5,000m: 1°C decrease for every 220m increase in altitude
Relative humidity: 5% to 95% (non-condensing)
Input Voltage AC:
Rated voltage range: 100V to 240V, 50 Hz/60 Hz
Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Dimensions (W x D x H) 442 mm x 220 mm x 44.4 mm
Typical Power Consumption AC:
without subcard: 109W
