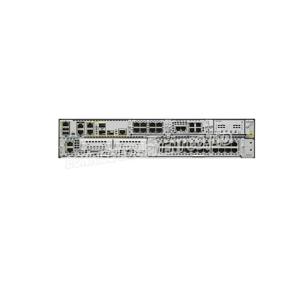

Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.
Cisco ISR4451-X/K9 Specification | |
| Aggregate Throughput | 1 Gbps to 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC and PoE |
| Redundant power supply | Internal: AC, DC and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | <50 A |
| Typical power (no modules) (watts) | 158 |
| Maximum power with AC power supply (watts) | 450 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
